System 03 / 05
Formwork System
Temporary mould structures supporting concrete pours for slabs, columns, walls and related works.
- Attribute
- Strong support
- Attribute
- Reusable panels
- Attribute
- Precise shaping
- Attribute
- Clean finish
Best suited to
Concrete structures needing accurate, repeatable forming.
Formwork System
Technical data
Components & specifications.

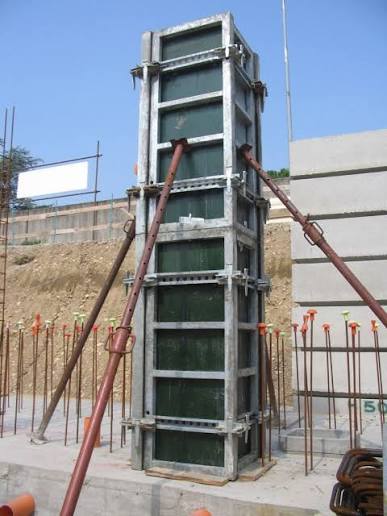

Slab, wall and column formwork — cuplock with H20 or aluminium-beam decks, aluminium panel column formwork, and the full accessory range with scaffold, LVL and steel boards.
Formwork accessories
| Accessory | Specification |
|---|---|
| Tie rod | Ø15.5 mm, up to 6 m — SWL 90 kN |
| Thrust / tie plate | 120 × 120 mm, 0.88 kg — SWL 90 kN |
| Timber waling clamp | For 50–75 mm walings, 0.80 kg |
| Universal clamp | For aluminium walers, 0.58 kg |
| Waterstop, wing nuts, sleeving & cones | Supplied with tie-rod assemblies |
Couplers — BS/EN 74 A-B, forged
| Coupler | Weight (kg) |
|---|---|
| Double coupler | 1.00 |
| Swivel coupler | 1.00 |
| Sleeve coupler | 1.25 |
| Putlog coupler | 0.65 |
| Joint pin | 0.82 |
| Gravlock girder coupler | 1.30 |
| Prop bracing swivel coupler | 1.30 |
Figures from the Najm Al Ofuq Scaffolding TR LLC company profile. Confirm project-specific requirements and load ratings with our team. Download the company profile (PDF).
