System 04 / 05
LVL & H20 Beam Systems

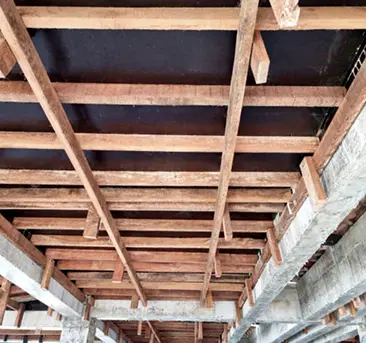

Engineered timber beams providing strong, dimensionally stable horizontal support for slab formwork.
- Attribute
- Engineered timber strength
- Attribute
- Lightweight handling
- Attribute
- Moisture-resistant
- Attribute
- Smooth finish
Best suited to
Dependable formwork support with efficient handling on deck.
LVL & H20 Beam Systems
Technical data
Components & specifications.
H20 engineered timber I-beam — 200 mm deep with 80 mm chords and a 3-ply laminated solid-wood web for high carrying capacity in continuous use, in every climate zone. LVL boards also supplied.
H20 beam lengths
| Length (mm) | Weight (kg) |
|---|---|
| 900 | 4.54 |
| 1200 | 6.05 |
| 1800 | 9.08 |
| 2150 | 10.85 |
| 2400 | 12.10 |
| 2650 | 13.37 |
| 2900 | 14.62 |
| 3300 | 16.63 |
| 3600 | 18.14 |
| 3900 | 19.66 |
| 4200 | 21.31 |
| 4500 | 22.57 |
| 4800 | 24.19 |
| 5100 | 25.73 |
| 5900 | 29.74 |
Section properties
| Property | Value |
|---|---|
| Section modulus (z) | 461 cm³ |
| Moment of inertia (I) | 4,613 cm⁴ |
| Beam depth × chord width | 200 × 80 mm |
Figures from the Najm Al Ofuq Scaffolding TR LLC company profile. Confirm project-specific requirements and load ratings with our team. Download the company profile (PDF).
