System 05 / 05
Prop System

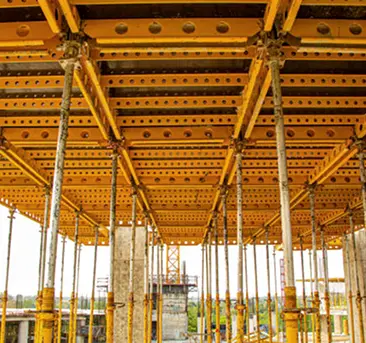

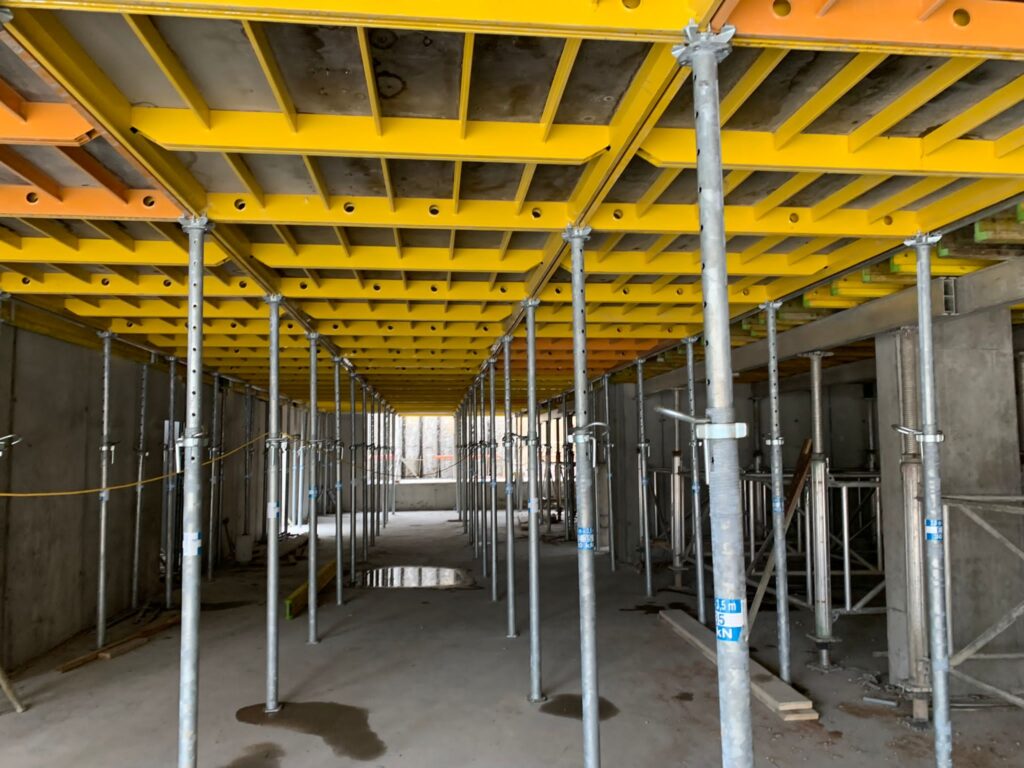

Height-adjustable vertical supports with load-bearing strength for ceilings, beams and decks.
- Attribute
- Adjustable height
- Attribute
- Heavy load support
- Attribute
- Galvanised finish
- Attribute
- Fast installation
Best suited to
Vertical support in formwork and back-propping applications.
Technical data
Components & specifications.
Adjustable props in BS, light/medium-duty, Korean and trench-strut ranges. BS props conform to BS 4074:1982 and are tested in accordance with BS 5507 Part 3:1982 (inner tube Ø48.3 × 4.0 mm, outer tube Ø60.3 × 3.6 mm), powder-coated against site wear.
BS props
| Description | Height range | Weight (kg) |
|---|---|---|
| BS Prop No. 0 | 1.07 – 1.82 m | 11.0 |
| BS Prop No. 1 | 1.75 – 3.12 m | 16.7 |
| BS Prop No. 2 | 1.98 – 3.35 m | 18.4 |
| BS Prop No. 3 | 2.59 – 3.95 m | 20.2 |
| BS Prop No. 4 | 3.20 – 4.87 m | 24.2 |
Light & medium duty props (2 mm tube)
| Size | Height range | Weight (kg) |
|---|---|---|
| 2.5 m | 1.50 – 2.50 m | 9.50 |
| 3.0 m | 1.75 – 3.00 m | 10.00 |
| 3.5 m | 2.00 – 3.50 m | 10.75 |
| 3.9 m | 2.40 – 3.90 m | 11.50 |
| 4.0 m | 2.50 – 4.00 m | 11.75 |
| 5.0 m | 3.00 – 5.00 m | 15.00 |
Trench struts — SWL 35 kN
| Description | Height range | Weight (kg) |
|---|---|---|
| Trench Strut No. 0 | 0.30 – 0.48 m | 5.1 |
| Trench Strut No. 1 | 0.45 – 0.68 m | 6.2 |
| Trench Strut No. 2 | 0.68 – 1.06 m | 8.4 |
| Trench Strut No. 3 | 1.06 – 1.67 m | 10.8 |
Korean props (3.9 m range, 11.5 kg) also available; 2, 3.2 and 4 mm tube thicknesses on request. Props must be plumb and loaded concentrically — safe working load reduces with extension.
Figures from the Najm Al Ofuq Scaffolding TR LLC company profile. Confirm project-specific requirements and load ratings with our team. Download the company profile (PDF).
